Removing Skid Plates on a C7 Z06 Corvette

Removing skid plates C7 Z06 might seem like a minor task, but for Corvette owners, it can be the difference between protecting your car’s underbody and gaining easier access for upgrades or repairs. Whether you’re trying to reach specific components for modification, save weight on the track, or replace damaged plates, this process has to be done with care. The skid plates on the C7 Z06 are more than just metal guards; they’re there for a reason, and taking them off without proper knowledge can lead to trouble. That’s why it’s essential to understand both the how and the why before grabbing your tools.

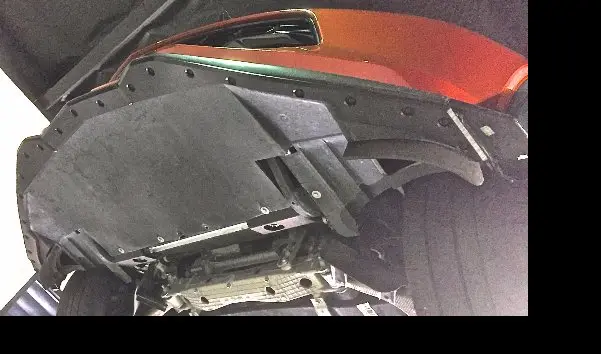

If you’re a proud owner of a C7 Z06 Corvette, you already know that it’s a performance beast. With 650 horsepower and a design focused on aerodynamics, even the underside of the car plays a role in how it performs. The skid plates are placed on the bottom front of the bumper to protect the splitter and undercarriage from scraping, especially on speed bumps and driveways. While many choose to keep them on, others remove them either for maintenance, aesthetic upgrades, or track use.

Is It Safe to Remove Skid Plates from a C7 Z06?

Before jumping into the actual steps, it’s important to understand that skid plates serve a real purpose. They help guard the front splitter, radiator area, and lower frame rails from road debris, curbs, and rough pavement. That said, removing skid plates C7 Z06 style is common in enthusiast circles, especially among those who frequently change bumpers, install aftermarket lips, or want smoother airflow for racing.

If you’re just looking to clean or replace the plates, it’s perfectly fine to remove them temporarily. However, if your plan is to drive the vehicle daily without them, you need to stay mindful of road conditions. The C7 Z06 sits low, and even a small bump in the road could cause serious damage to the unprotected components underneath.

Tools and Preparation Before You Begin

To start the process of removing skid plates on a C7 Z06, you need to make sure the car is positioned on a flat surface. Use jack stands or ramps to safely lift the car so that you can work comfortably underneath. It’s also a good idea to disconnect the battery for extra safety. You’ll need a 7mm socket, 10mm socket, T15 Torx driver, ratchet extension, flathead screwdriver, and plastic pry tools for the trim clips. These tools are standard, but be sure to keep everything close by to avoid crawling in and out from under the car repeatedly.

Step-by-Step Guide to Removing Skid Plates on a C7 Z06

Once you’ve lifted the vehicle securely, begin by removing the undertray. This is the panel that runs underneath the front of the car. There are multiple screws—some are 7mm and located toward the front, while others are 10mm and found farther back. You may also need to remove any attached deflectors or additional panels to access all the screws holding the undertray.

After the undertray is removed, you’ll get access to the wheel liners. Each liner is held in place with three T15 Torx screws. Carefully remove these screws, and pull the liners aside without damaging them. This gives you the room needed to reach the mounting bolts for the skid plates.

The skid plates themselves are attached with bolts that are usually 15mm in size. Start loosening each bolt carefully. If the plate feels heavy or begins to sag, have a second person support it from underneath while you take out the final bolts. That way, you won’t risk damaging the plate or injuring yourself.

If you’d like a visual demonstration, this YouTube tutorial on C7 bumper removal also covers parts of the skid plate disassembly process. It’s helpful if you’re more of a visual learner and want to follow along step-by-step.

What Happens After Skid Plate Removal?

After removing skid plates C7 Z06 owners often notice better accessibility to oil lines, radiators, or aftermarket parts that might be going on. If you’re planning to add a front lip, adjust intercooler plumbing, or replace brake ducting, this open space makes it far easier to work.

However, remember that these plates also act as protection. If your Corvette is a daily driver or you live in an area with poorly maintained roads, it’s risky to leave them off long-term. You might end up scraping or damaging your bumper, splitter, or vital components. If you’re heading back on the road after a project, always double-check if the plates should be reinstalled.

If you’re racing or tracking your car and need the skid plates off for weight reduction or airflow optimization, that’s a different story. In that case, most drivers already understand the risks and drive on smoother surfaces anyway. Still, even for race day setups, some lightweight aftermarket skid plate options are available to replace the factory ones if full removal feels unsafe.

Tips for Reinstallation or Replacement

In case you’re planning to put the skid plates back after some time, keep all the screws and fasteners labeled and stored properly. These parts are easy to lose and tricky to find replacements for. You can even apply anti-seize on the bolts before reinstalling them to make future removal easier.

If your original skid plates are damaged, scratched, or worn out, you can order aftermarket ones like ProTEKt skid plates for C7 Z06, which offer both function and sleek looks. Some of them are made with aluminum or carbon fiber and can actually add style while still doing the job.

Conclusion: Should You Remove Skid Plates on a C7 Z06?

In the end, removing skid plates C7 Z06 isn’t a complicated task, but it’s one that needs care and attention. For most Corvette owners, doing it the right way means safer modifications, easier maintenance, and better understanding of your car’s underbody. If your goal is to upgrade or clean the area, this process is a useful skill to have. But if you plan to keep them off permanently, be sure you know the risks, especially with how low the Z06 sits.

As long as you follow safety procedures, use the right tools, and treat your Corvette with the respect it deserves, removing the skid plates can be a helpful and even necessary part of owning and upgrading a high-performance machine like the C7 Z06.

FAQs About Removing Skid Plates C7 Z06

Q1: Is removing skid plates on a C7 Z06 safe for daily driving?
Removing skid plates is safe short-term for maintenance or upgrades, but not recommended for daily driving. They protect vital parts from road damage.

Q2: Do skid plates affect the performance of the C7 Z06?
They don’t affect speed or engine performance directly but help preserve aerodynamic stability and protect against scraping, especially on low-sitting sports cars like the Z06.

Q3: Can I install aftermarket skid plates after removing the originals?
Yes, aftermarket options like ProTEKt skid plates are available and can be lighter or more durable than factory parts.

Q4: What tools do I need to remove skid plates from a C7 Z06?
You’ll need 7mm and 10mm sockets, a T15 Torx driver, a flathead screwdriver, and ideally a jack stand or lift for safe access.

Q5: How long does it take to remove skid plates?
It usually takes 30 to 45 minutes if you have the proper tools and basic mechanical knowledge. Always follow safety steps when working underneath the car.
